Monitoring

Key Features

🌐 Distributed Monitoring

Launch workers in different networks and regions for objective availability assessment.

🔐 Multi-tenancy and RBAC

Multiple users, groups, and detailed access control system for all resources.

📊 Variety of Check Types

HTTP(S), TCP, Ping, and Docker container status monitoring via API.

🔔 Smart Notifications

Configure alerts in Telegram and Mattermost. The system doesn't spam during partial failures.

🐳 Docker Monitoring

Centralized tracking of your containers status across all hosts.

📝 Audit Log

Complete history of all user actions in the system for maintaining order and security.

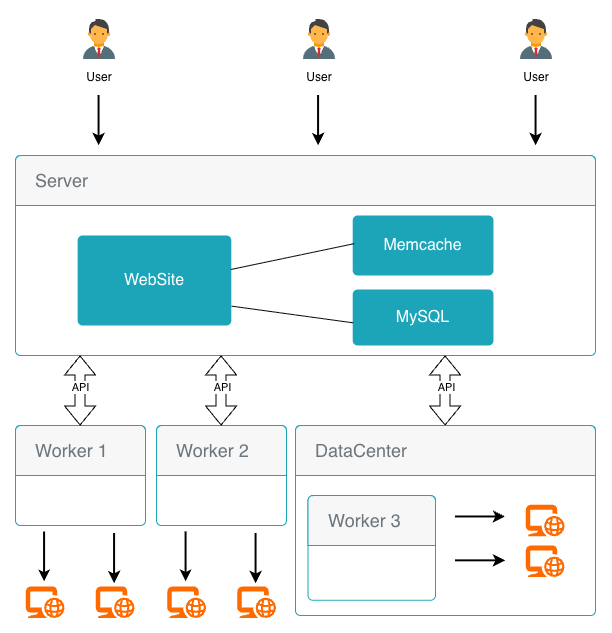

Simple and Powerful Architecture

The system consists of two components:

Server

akeb/monitoring:latest

Control center. Web interface, database, API.

Docker Hub

Worker

akeb/monitoring-worker:latest

Lightweight agent. Performs checks and sends results to the Server.

Docker Hub

architecture

Server Installation

1. Create Project Directory


                    mkdir monitoring-server

                    cd monitoring-server

2. Create Environment File

Create .env file with your configuration:


                    # Timezone

                    TZ=Europe/London



                    # MySQL

                    MYSQL_PASSWORD=YourSecureRootPassword123



                    # Web Server Port

                    NGINX_PORT=80



                    # Memcached

                    MEMCACHED_HOST=memcached



                    # Security - CHANGE THIS!

                    PASSWORD_SALT=YourRandomSaltStringHere123456789

3. Create Docker Compose File

Create docker-compose.yml:


                ---

                services:

                      mysql:

                        container_name: monitoring-mysql

                        image: mysql:latest

                        restart: always

                        environment:

                          TZ: ${TZ:-UTC}

                          MYSQL_ROOT_PASSWORD: ${MYSQL_PASSWORD:-RootPassword}

                        volumes:

                          - ./mysql_data:/var/lib/mysql

                        healthcheck:

                          test: ["CMD", "mysql", "-h", "127.0.0.1", "-u", "root", "--password=${MYSQL_ROOT_PASSWORD}", "-e", "show databases;"]

                          start_period: 10s

                          interval: 5s

                          timeout: 5s

                          retries: 55



                      memcached:

                        container_name: "monitoring-memcached"

                        image: memcached

                        restart: always

                        environment:

                          TZ: ${TZ:-UTC}

                        command:

                          - --conn-limit=1024

                          - --memory-limit=32

                          - --threads=4



                      server:

                        container_name: "monitoring-server"

                        image: "akeb/monitoring:latest"

                        restart: always

                        environment:

                          TZ: ${TZ:-UTC}

                          NGINX_PORT: ${NGINX_PORT:-80}

                          MYSQL_HOST: mysql

                          MYSQL_PASSWORD: ${MYSQL_PASSWORD:-RootPassword}

                          MEMCACHED_HOST: ${MEMCACHED_HOST:-memcached}

                          PASSWORD_SALT: ${PASSWORD_SALT:-bHchLzC3B99Ss1213127fdw876EDghc2gkDdtg}

                        volumes:

                          - ./logs/php/:/var/log/php/:rw

                          - ./logs/nginx/:/var/log/nginx/:rw

                        ports:

                          - "${NGINX_PORT:-80}:80"

                        depends_on:

                          mysql:

                            condition: service_healthy

                          memcached:

                            condition: service_started

4. Start the Server

docker-compose up -d

The server will be available at http://your-server-ip

Quick Start

1. Access the Web Interface

Open your browser and navigate to your server's IP address.

2. Create Your First Worker

Log in to the web interface (default admin account: E-mail admin@admin.com and password Admin@123)
Navigate to "Workers" section
Click "Create Worker"
Copy the generated unique worker key

3. Deploy Worker Agent

On each remote server where you want to perform monitoring, run:


                docker run -d \

                  --name monitoring-worker \

                  -e SERVER_URL=https://your-monitoring-server.com \

                  -e WORKER_KEY=your_unique_worker_key_here \

                  akeb/monitoring-worker:latest

4. Create Your First Monitor

Go to "Monitors" section
Click "Create Monitor"
Select check type (HTTPS, TCP, Ping, or Docker)
Configure check parameters and frequency
Select which workers should perform the checks
Save the monitor

You'll see the first results within a minute!

Monitor Your Services Availability Worldwide
